AR40-W With its soothing, minimalist tech aesthetic, the AR40-W is a skin-friendly, lightweight AI full-color smart glasses that packs the freedom of independent computing into a feather-light 99-gram frame, meeting all-scenario smart wearable needs without any burden.
Lightweight, Personalized Design:
Available in multiple colors with skin-friendly materials, snap-in/magnetic detachable sunglasses lenses, and memory-shaped adjustable silicone nose pads. Supports OEM customization to meet personalized smart wearable needs across all scenarios.
Independent Smart Interaction Design:
Equipped with a quad-core ASR8601 processor and the Android 8.1 system as its dedicated “computing core,” it supports binocular full-color waveguide displays and independent 4G connectivity across all networks, providing core interaction support for a full-scenario smart AR experience.
Key Features and Interaction Experience:
The AR40-W’s functional system is entirely centered around your real-world smart needs, built around a closed-loop of “independent computing—full-color display—free interaction” to deliver a seamless, immersive AR smart experience across all scenarios.
Scenarios: Outdoor activities, navigation and guidance, industrial inspections, medical assistance, education and training, logistics and warehousing, security monitoring, daily office work…
|
AR40-W AI Glasses Series |
||
| Type | Details | Description |
| Product Form | Product Format | AR All-in-One Headset |
| Dimensions | 163 × 56.5 × 25 mm | |
| Prescription/Sunglasses | Snap-in/Magnetic Detachable | |
| Silicone Nose Pads | Memory Foam, Adjustable Size | |
| Clamping Force | ≤3N | |
| Product Weight | ≤99g | |
| Model Type | Single-engine | |
| Optics |
/ |
light guide |
| Screen Type | Binocular full-color | |
| Pupillary Distance | 64mm | |

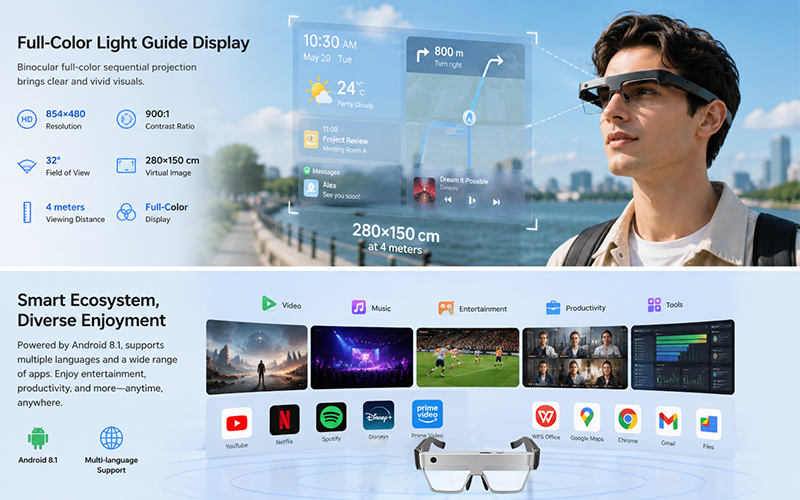

| Display | Screen Type | Chromatic projection |
| Resolution | 854 × 480 | |
| Contrast Ratio | 900:1 | |
| Display Brightness | 200nits | |
| Field of View | 32° | |
| Image Size | 280 × 150 cm (4 meters) | |
| Battery | Type | Polymer battery |
| Capacity | 3.85V/1200mAH (left and right temples) | |
| Battery Life | ≥3.5 hours | |
| Hardware | CPU | Quad-core ASR8601 |
| RAM | 4GB | |
| Specifications | ROM | 64GB |

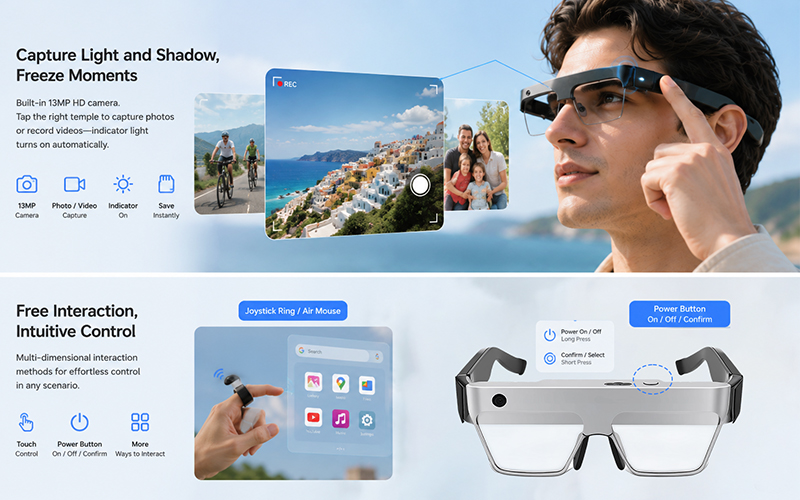

| sensor | Camera | 1300W |
| GPS | GPS | |
| Indicator Light | White LED | Camera Activity Indicator |
| Audio | Dual Mics | (-42 dB) Left and Right Temples |
| Dual Speakers | BOX 8 ohms, 0.5W×2 | |
| Interaction | Peripherals | Joystick Ring / Air Mouse Control |
| Power Button | On/Off/Confirm | |
| Touch | Outer Side of Right Temple | |
| TYPE-C | USB 2.0 Data/Charging | |
| Connectivity | 4G | All-network compatible/eSIM |
| WIFI | 2.4G/5G | |
| Bluetooth | Bluetooth 5.0 | |
| Operating System | OS Version | Android 8.1 |
| Languages | Supports multiple languages | |
Computer-Related
1. How long is the warranty period?
A: One year
2. Which operating systems are supported?
A: The Foldix, PocketCore, and FoldX86 series all support their respective operating systems
3. Are all hosts compatible with all headsets?
A: Yes, they are all compatible
4. How is the cooling?
A: Both fan-equipped and fanless versions are available; choose according to your needs
5. What is the battery life?
A: 4 hours on a full charge; 2–3 hours during use
Glasses-Related
1. Are they heavy?
A: ARPC C weighs only 86g; ARPC W weighs only 99g
2. Can I wear them with prescription glasses?
A: Supports diopter adjustment from 0 to 600°
3. What is the display quality like?
A: ARPC C: 1080p; ARPC W: 854×480
4. What scenarios does it support?
A: Movie watching, gaming, office work, healthcare, education, industry, etc.
